Views: 10 Author: Site Editor Publish Time: 2025-02-26 Origin: Site
We’ve noticed that when users choose a dryer, they often weigh upfront factors like cost, efficiency, and material compatibility. It’s a big decision—after all, the right drying equipment can streamline production, save energy, and even boost product quality, while the wrong choice might lead to headaches down the line. So today we compare our Hollow Screw Vacuum Dryer with some popular dryers—Vacuum Rake Dryer, Vacuum Plate Dryer, Hot Air Oven, Spray Dryer and Fluidized Bed Dryer—to help you decide which suits your needs best.
Drying is a critical step in many industries, affecting product quality, energy costs, and environmental compliance. How does our Vacuum Screw Dryer stack up against the competition?
| Item | Hollow Screw Vacuum Dryer | Vacuum Rake Dryer | Vacuum Plate Dryer | Hot Air Circulation Oven | Spray Dryer | Fluid Bed Dryer |
Working Principle | Under vacuum, the spiral blades, spindle and inner wall are heated multiple times, and dynamically flip and dry | Under vacuum, rake agitation and jacket heating for conduction drying | Under vacuum, the multi-layer plates surface is statically heated and conductive drying | Under normal pressure or slight negative pressure, hot air circulates and dries by convection | High-temperature atomization spray, instant evaporation of water | Hot air blows animal material to suspend, fluidized convection drying |
Drying Efficiency | High (multi-heating surface + dynamic mixing, efficiency increased by 30%-50%) | Medium (limited by heat transfer area and stirring) | Medium (static drying, limited heat transfer efficiency) | Low (high heat loss) | Extremely high (instant drying, liquid only) | High (fluidized uniform heat transfer, suitable for particles) |
Applicable materials | Liquids, powders, granules, pastes, especially heat-sensitive, high-value materials | Paste, powder, suitable for heat-sensitive materials | Powder, granules, suitable for a small amount of heat-sensitive materials | Solid materials (such as medicinal herbs, dried fruits), not suitable for heat-sensitive materials | Liquids or slurries, not suitable for solid materials | Granules or powders (with some fluidity), not suitable for viscous materials |
Uniformity | Excellent (spiral turning, no dead ends) | General (uneven stirring may cause local overheating) | Medium (static accumulation may be uneven) | General (manual turnover, easy to uneven) | High (homogeneous atomization, but fine particles) | Excellent (fluidized suspension, uniform heating) |
Energy consumption | Medium (vacuum pump + multiple heating surfaces, high heat utilization) | Medium (vacuum pump + jacket heating, stable energy consumption) | Higher (multi-layer heating, more heat loss) | High (hot air circulation, large waste of energy) | Extremely high (high temperature air flow, small temperature difference between inlet and outlet, extremely high heat loss) | Medium to high (requires continuous hot air, high energy consumption) |
Safety and environmental protection | High (fully enclosed, no dust leakage, suitable for toxic materials) | High (closed design, suitable for toxic materials) | Medium (good containment, but limited dust control) | Low (may have dust or exhaust emissions) | Medium (requires exhaust gas treatment, complex dust recovery) | Medium (dust needs to be filtered, exhaust emissions need to be treated) |
Solvent recovery | Recover more than 90% of solvents | 80%-90% | 80%-90% | External equipment required, recovery rate < 50% | Special recycling device, recovery rate of about 60%. | Poor |
Machine Cost | Higher | Medium | Medium | Low | High | Medium |

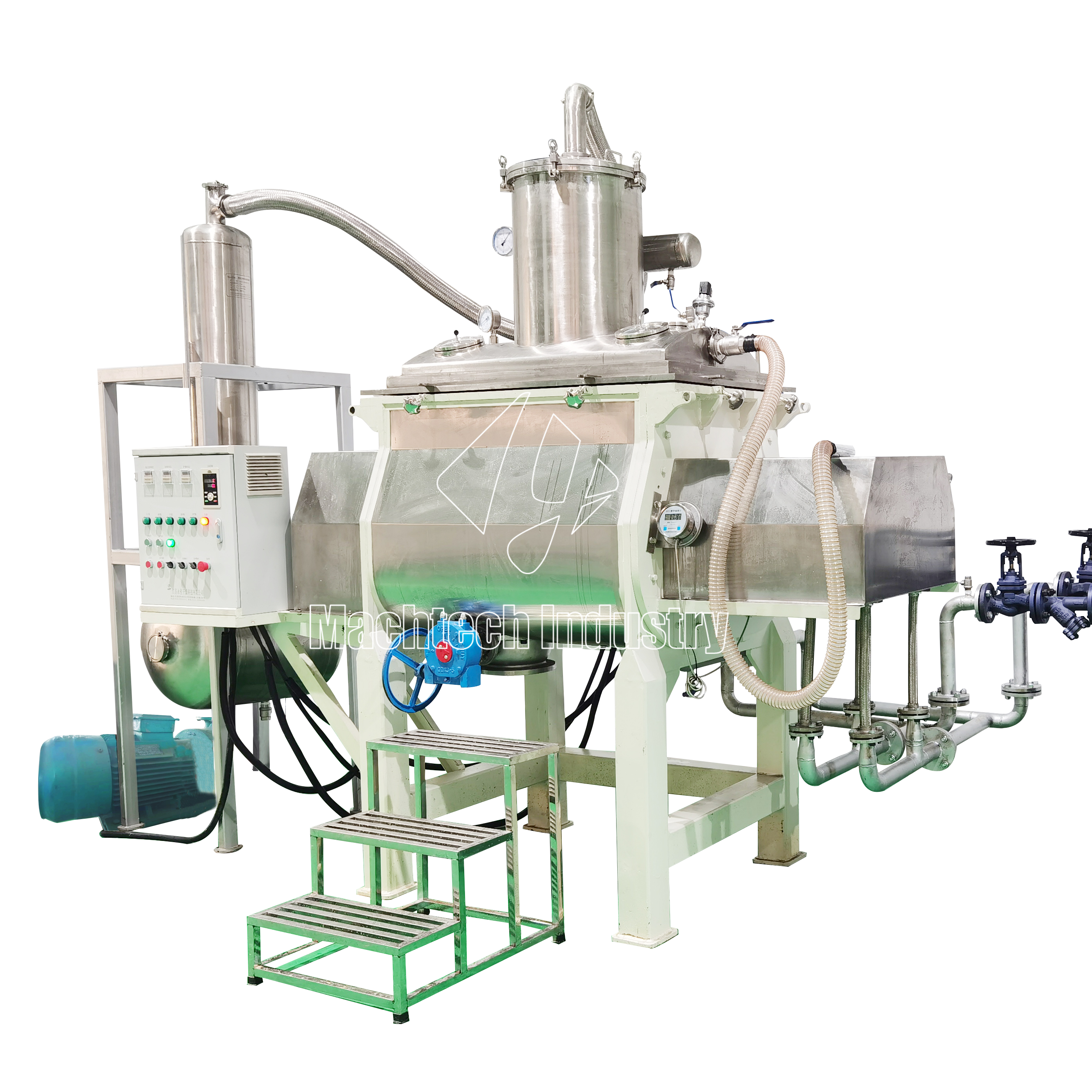

The Hollow Screw Vacuum Dryer stands out with its multi-heating design—spiral blades, main shaft, and inner walls all contribute to heat transfer. Operating under vacuum, it lowers the boiling point of solvents, making it ideal for heat-sensitive materials like pharmaceutical APIs or herbal extracts. Its dynamic mixing ensures uniform drying with no dead zones, boosting efficiency by 30%-50% compared to traditional vacuum dryers. Plus, its sealed system excels at solvent recovery, achieving over 90% recapture rates for valuable solvents like ethanol or acetone.
· Best For: High-value, heat-sensitive materials needing uniform drying and solvent recovery.
· Drawback: Higher upfront cost, but offset by long-term savings.

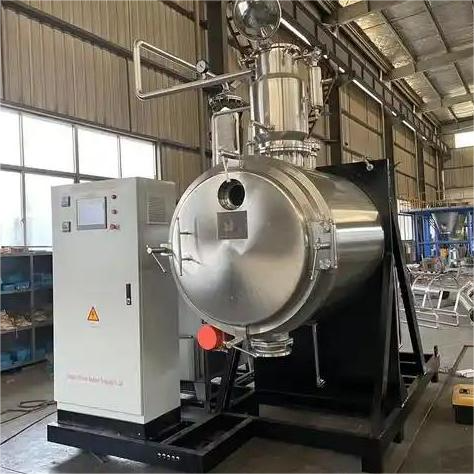

The Vacuum Rake Dryer uses a simpler design—rakes stir the material while a heated jacket provides warmth in a vacuum. It’s great for pasty or sticky substances, but its efficiency lags due to limited heat transfer area. Solvent recovery is solid (80%-90%), though uneven stirring can leave some solvent trapped.
· Best For: Sticky materials on a budget.
· vs Screw dryer: Lower efficiency and uniformity.

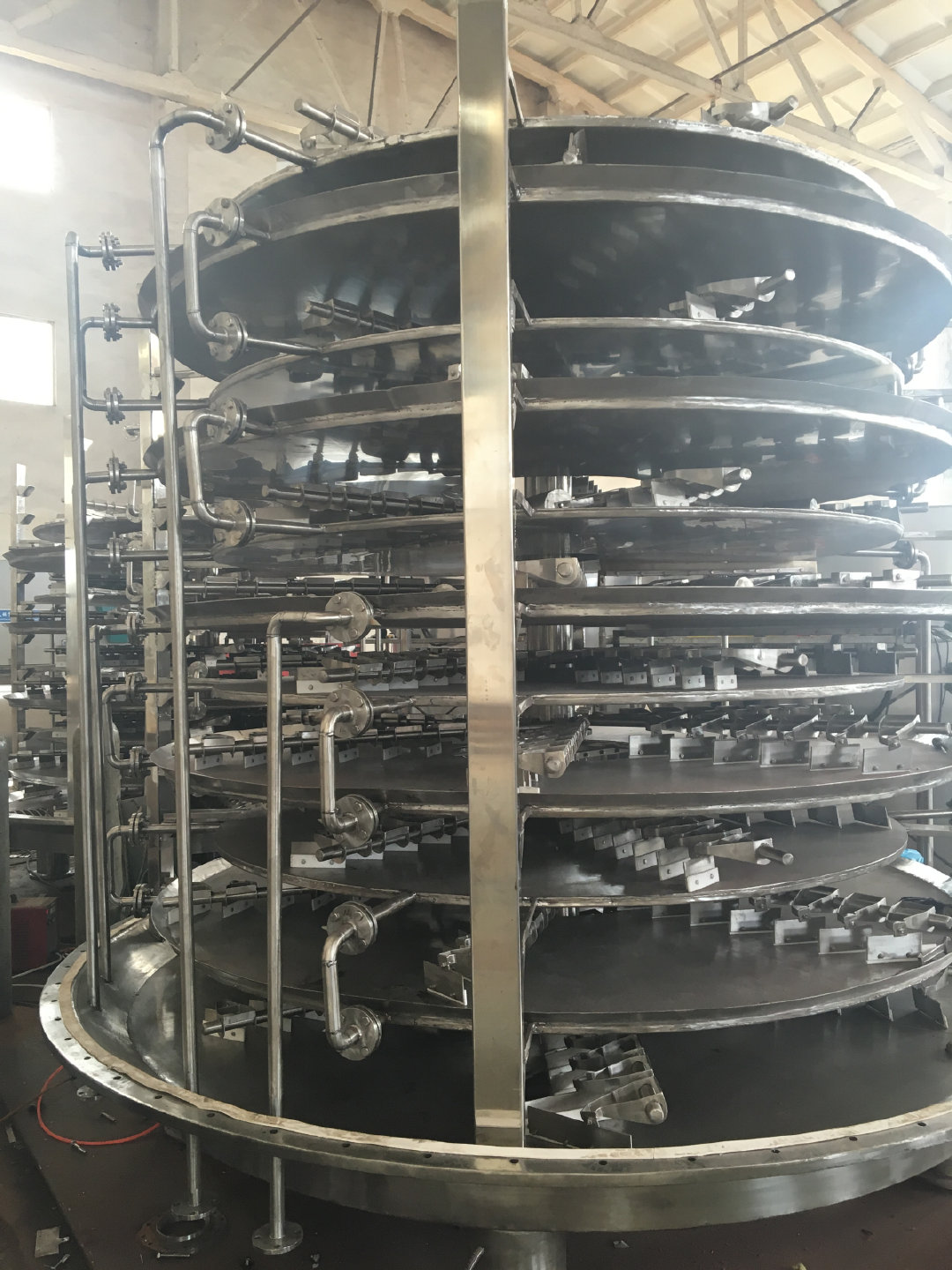

The Vacuum Plate Dryer dries materials statically on stacked trays in a vacuum. It’s reliable for small batches of powders or granules, with decent solvent recovery (80%-90%). However, static drying means longer times and potential unevenness.
· Best For: Low-volume, heat-sensitive drying.
· vs Screw dryer: Less efficient and less uniform.

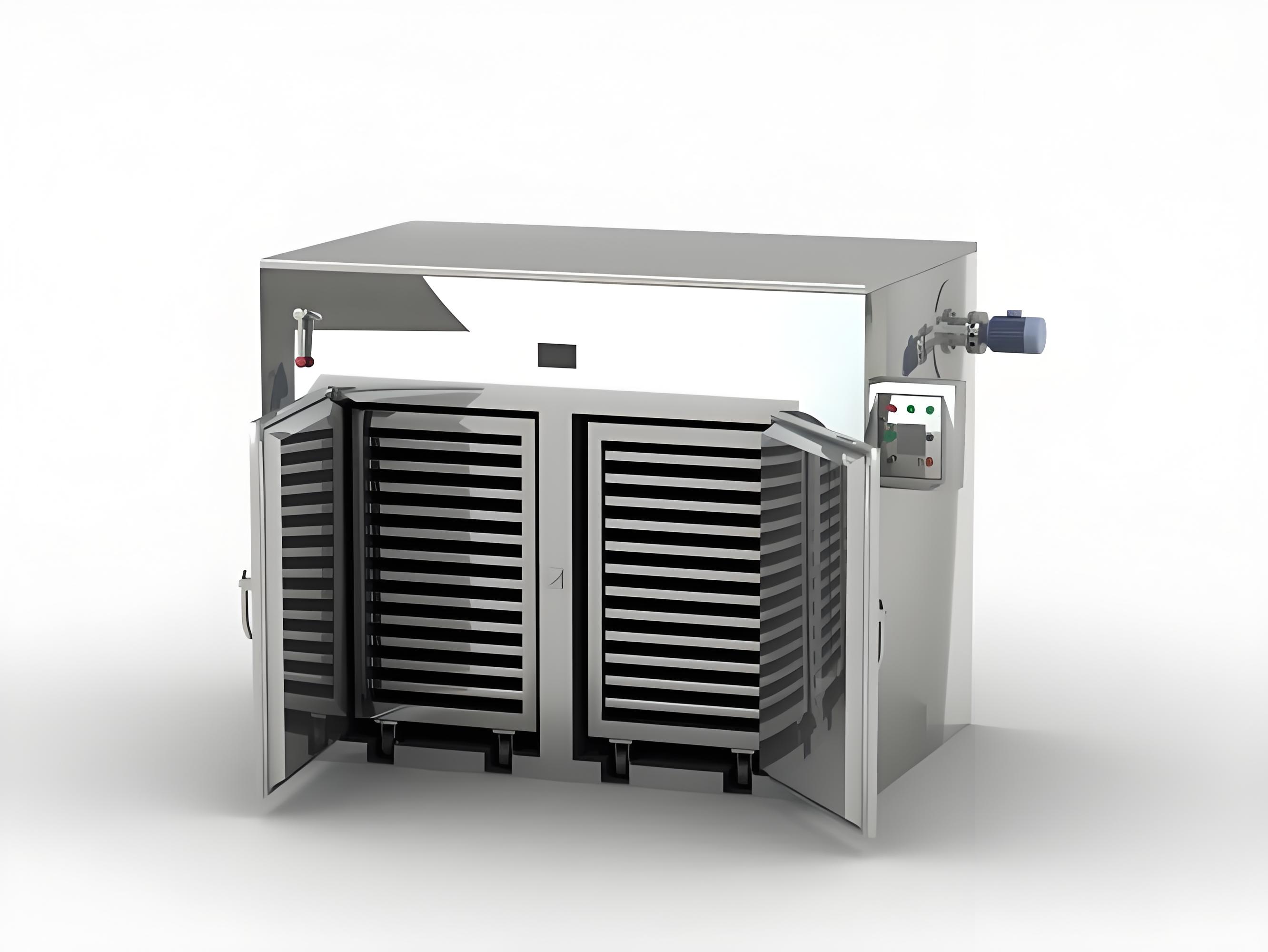

The Hot Air Oven relies on circulating hot air at atmospheric pressure. It’s cheap and simple, perfect for drying herbs or non-sensitive solids. But it struggles with heat-sensitive materials and solvent recovery—most solvents escape with the exhaust, yielding under 50% recovery.
· Best For: Basic, low-cost drying.
· vs Screw dryer: Higher energy loss, no solvent recovery.

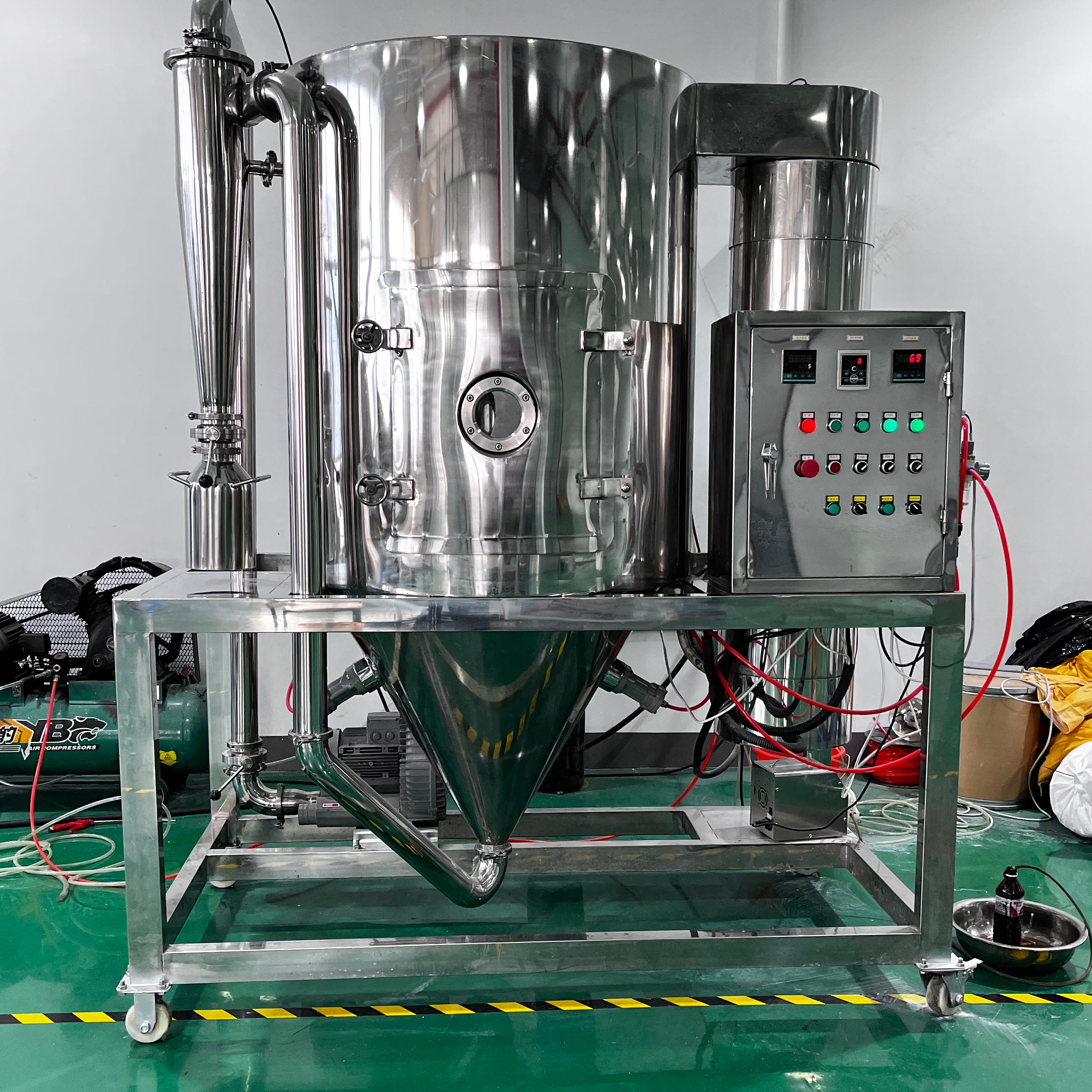

The Spray Dryer atomizes liquids into a hot gas stream, drying them instantly. It’s unmatched for slurries or solutions, but solvent recovery tops out at 60%-80% due to gas dispersion. Its high energy use and liquid-only limitation set it apart.
· Best For: Large-scale liquid drying.
· vs Screw dryer: Limited material range, higher costs.

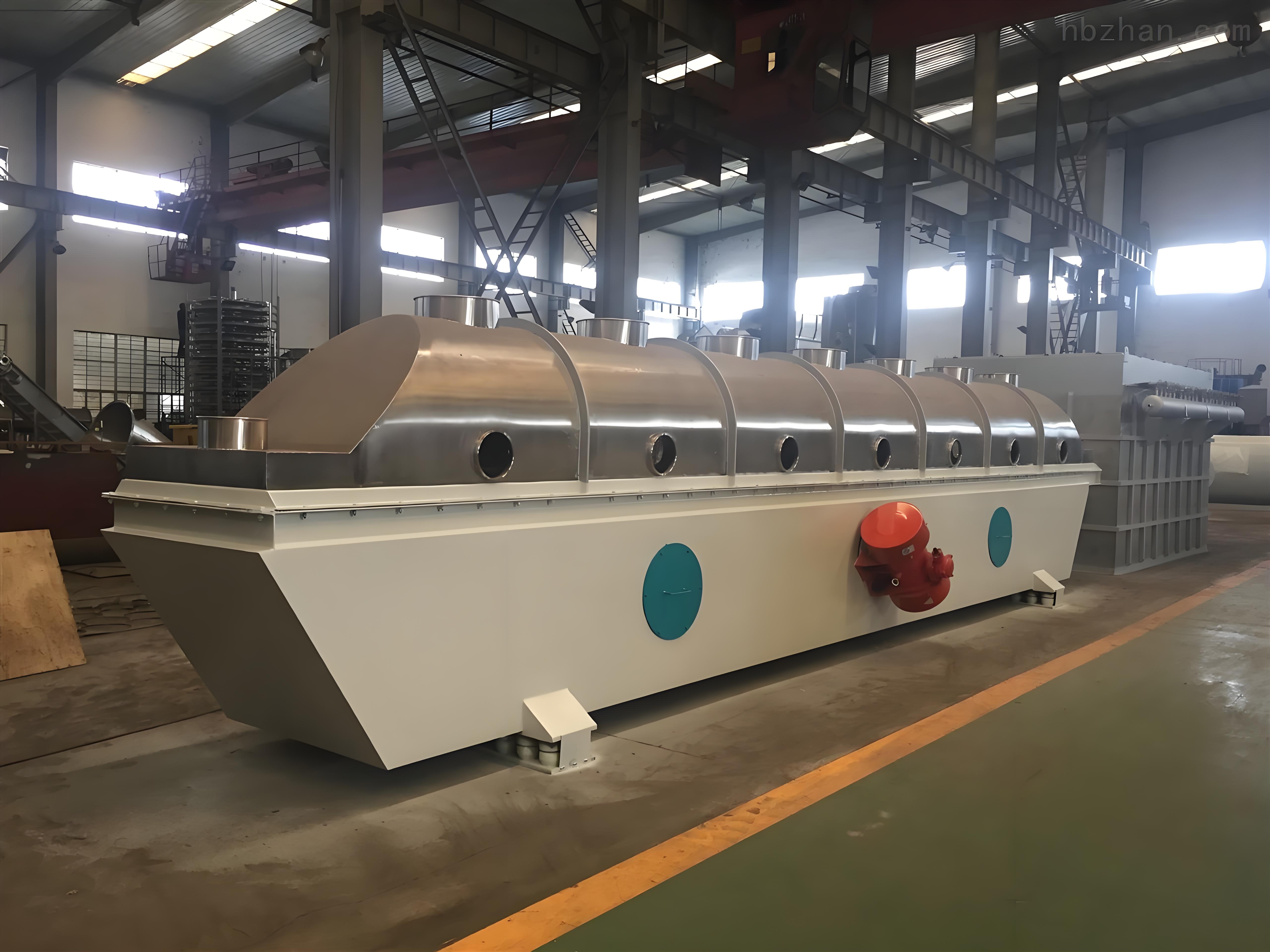

The Fluidized Bed Dryer suspends particles in hot air for rapid, uniform drying. It shines with granules (e.g., pharmaceutical pellets), but sticky materials clog it. Solvent recovery is poor as vapors escape with the airflow.
· Best For: Granular, continuous drying.
· vs Screw dryer: Less versatile, weaker solvent recovery.
· High-Value Materials: Go for the Hollow Screw Vacuum Dryer—its efficiency and solvent recovery justify the investment. Generally it can be used to dry high value-added materials, of course, if you have enough budget, almost all types of materials can be dried also.
· Sticky Pastes: The Vacuum Rake Dryer offers a cost-effective alternative.
· Small Batches: The Vacuum Tray Dryer keeps it simple.
· Basic Solids: The Hot Air Oven is your low-budget pick.
· Liquids: The Spray Dryer reigns supreme.
· Granules: The Fluidized Bed Dryer excels in uniformity.
Choosing the right dryer depends on your materials, budget, and goals. The Hollow Screw Vacuum Dryer offers a premium solution for efficiency and solvent recovery, but each option has its niche. Want to see it in action? Contact us for a demo or explore our dryer page for specs and pricing.
