In the field of powder mixing, achieving uniform blending of light and heavy powders remains a classic challenge. Due to their low density, light powders tend to float on top of the main powder body or even become suspended in the air during mixing. Conversely, heavy powders, with their higher density, tend to sink to the bottom of the mixing container. This density disparity makes it difficult to achieve uniform mixing, directly impacting the stability and consistency of product quality.
The difficulty in mixing light and heavy powders primarily stems from their differing physical properties:
· Light Powders: Low density, easily influenced by airflow and mechanical motion, difficult to settle, often floating on the material surface or upper layer.
· Heavy Powders: High density, prone to settling, and tend to accumulate at the bottom of the mixing container.
These characteristics can lead to significant issues in actual production, particularly in the following industries:
· Pharmaceutical Industry: Active pharmaceutical ingredients (APIs) are often light powders, while excipients (e.g., starch, microcrystalline cellulose) may be heavy powders. Uneven mixing can lead to inconsistent API distribution, causing dosage variations that affect efficacy and safety.
· Food Industry: Trace nutritional additives (e.g., vitamins, minerals) are typically light powders, while base materials (e.g., flour, milk powder) may be heavy powders. Non-uniform mixing results in inconsistent taste or nutritional content.
· Chemical Industry: Catalysts are usually light powders, while carrier powders may be heavy. Uneven mixing reduces catalytic reaction efficiency, impacting yield or increasing byproducts.
For example: in seasoning production, heavy salt particles (density 1.4 g/cm³) need to be mixed with lighter spice powders like chili powder or dried onion powder (density 0.25 g/cm³). This is a typical light-heavy powder mixing challenge. Experiments show that conventional mixers struggle to blend salt and spice powders uniformly, and even extending mixing time fails to achieve homogeneity.
If these challenges are not addressed, product quality will consistently fall short of ideal standards, potentially leading to batch failures, increased production costs, and market risks.
Traditional mixing equipment often falls short in handling light and heavy powders:

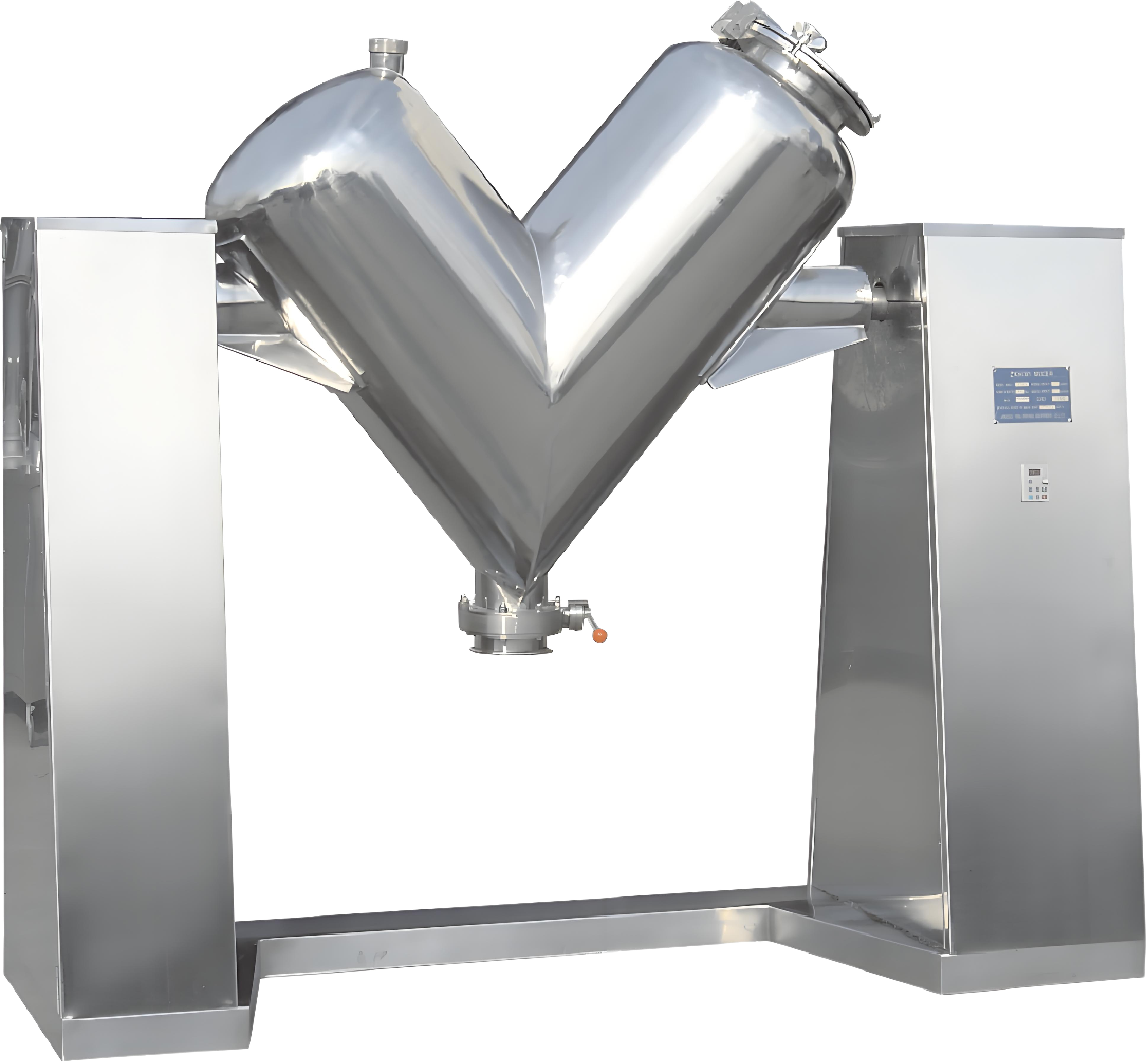

V-Type Mixer
Relies on gravity-based mixing, struggling to overcome density differences, resulting in limited effectiveness

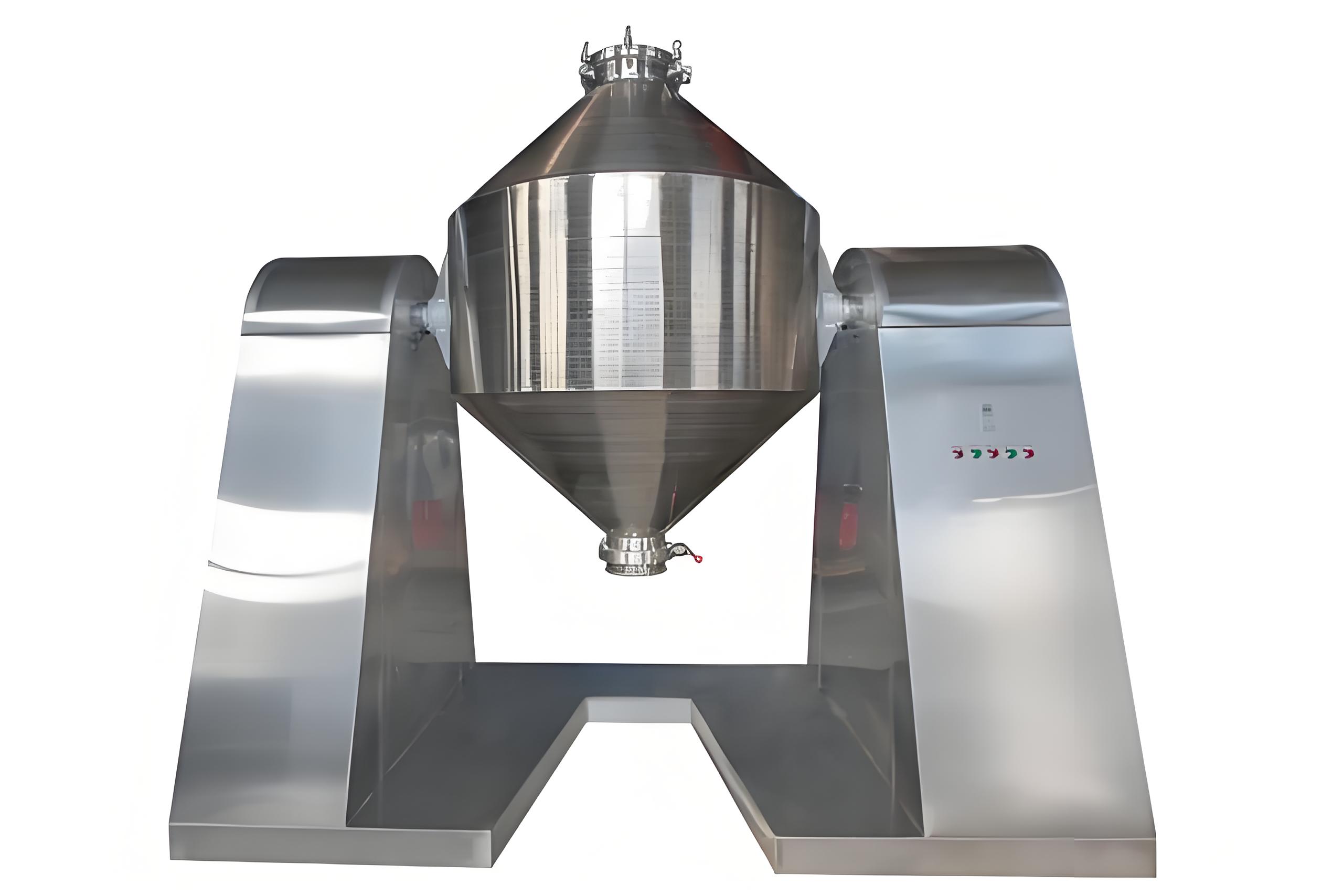

Double-Cone Mixer
Offers three-dimensional motion but lacks control over light powders, leading to layering issues
Ribbon Blender
Uses rotating ribbons to agitate powders, but struggles with light powders floating upward and heavy powders settling, resulting in poor uniformity

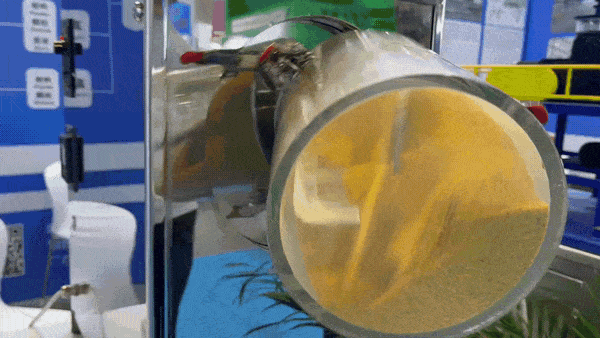

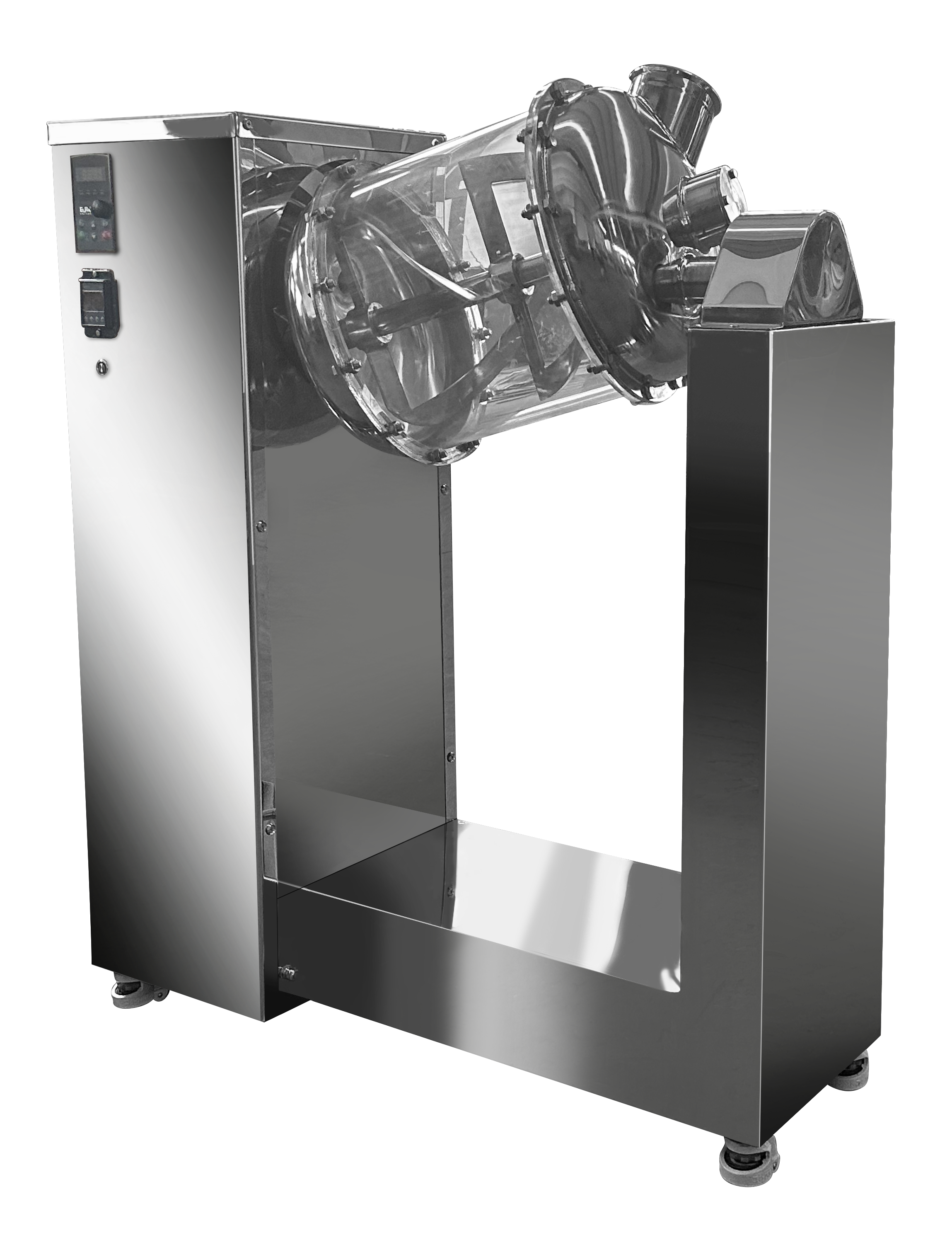

The Ultra-Dimensional Multi-Mode Mixer is an innovative device designed specifically to address the challenges of mixing light and heavy powders. Through its unique multi-dimensional motion and flexible control system, it excels in mixing efficiency and uniformity.
The Ultra-dimensional multi-mode mixer achieves uniform mixing of light and heavy powders through the following mechanisms:
· Multi-Dimensional Drum Motion: The mixing drum moves in multiple directions (up, down, left, right), creating complex three-dimensional mixing paths that break up material clumps and promote intermingling of powders.
· Synchronous Screw Ribbon Motion: The internal screw ribbon rotates in the same direction as the drum, entraining floating light powders downward into the main powder body while lifting sunken heavy powders upward for thorough contact with light powders.

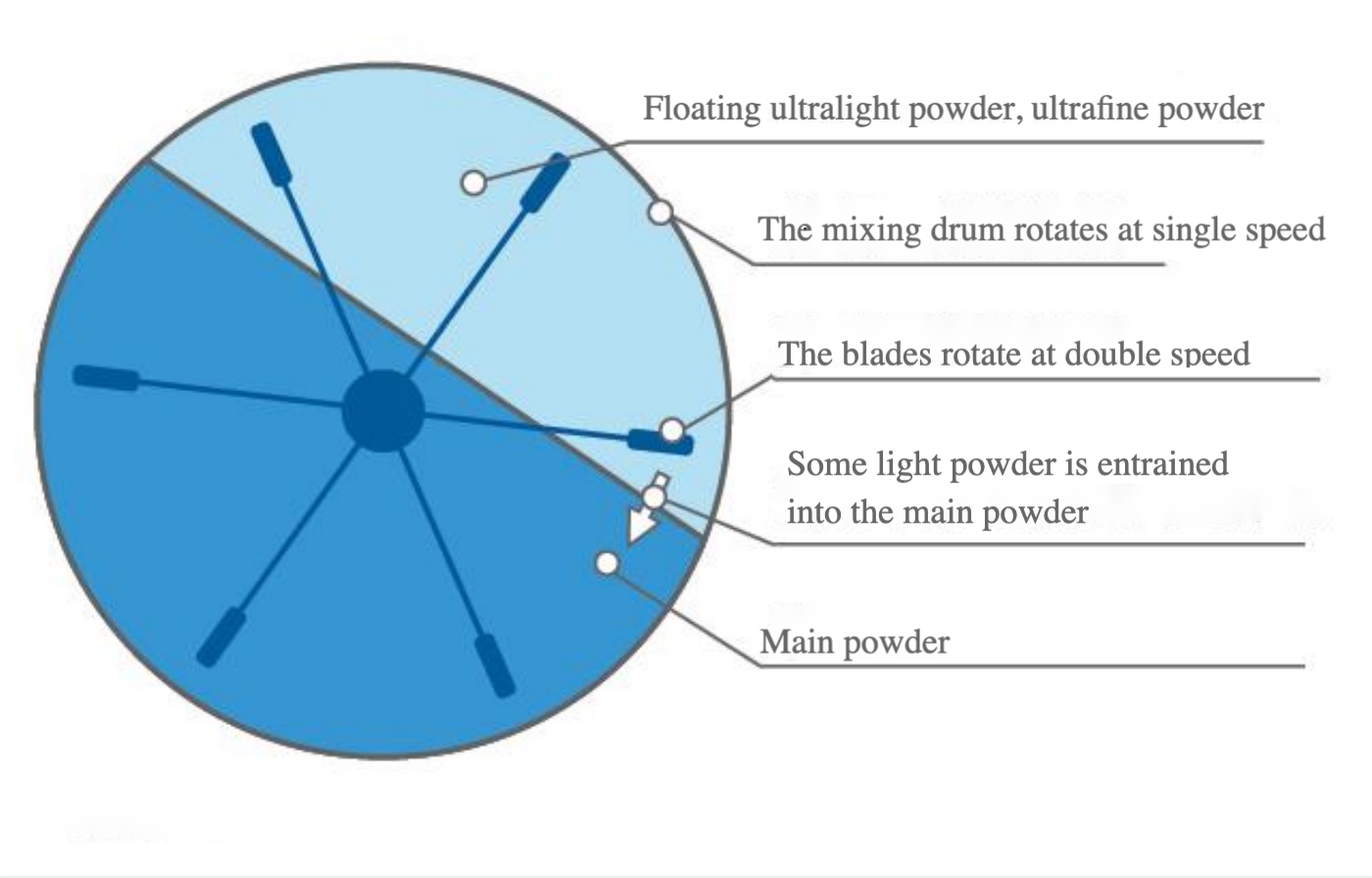

The mixing drum rotates at single speed, while the blades rotate at double speed to enhance mixing dynamics.Some light powders are entrained into the main powder body, ensuring thorough blending.
· Forced Entrainment and Mixing: The coordinated motion of the drum and screw ribbon forcibly blends light and heavy powders together, achieving uniform mixing.
· Independent Control System: The drum and screw ribbon’s speed and direction can be independently adjusted, supporting same-direction, reverse, or intermittent motion modes to suit various material properties and mixing requirements.
· High-Efficiency Mixing: The combination of multi-dimensional motion and screw ribbon agitation significantly improves mixing efficiency, reducing mixing time.
· Wide Applicability: Suitable for a variety of powders, including light, heavy, and viscous powders, meeting the needs of pharmaceutical, food, chemical, and other industries.
If you are facing challenges with mixing light and heavy powders, consider exploring the hyper-dimensional multi-mode mixer. It could be a critical step toward improving your product quality.
Contact us: info@machtechdryer.com
We welcome you to conduct experiments with us at any time.
